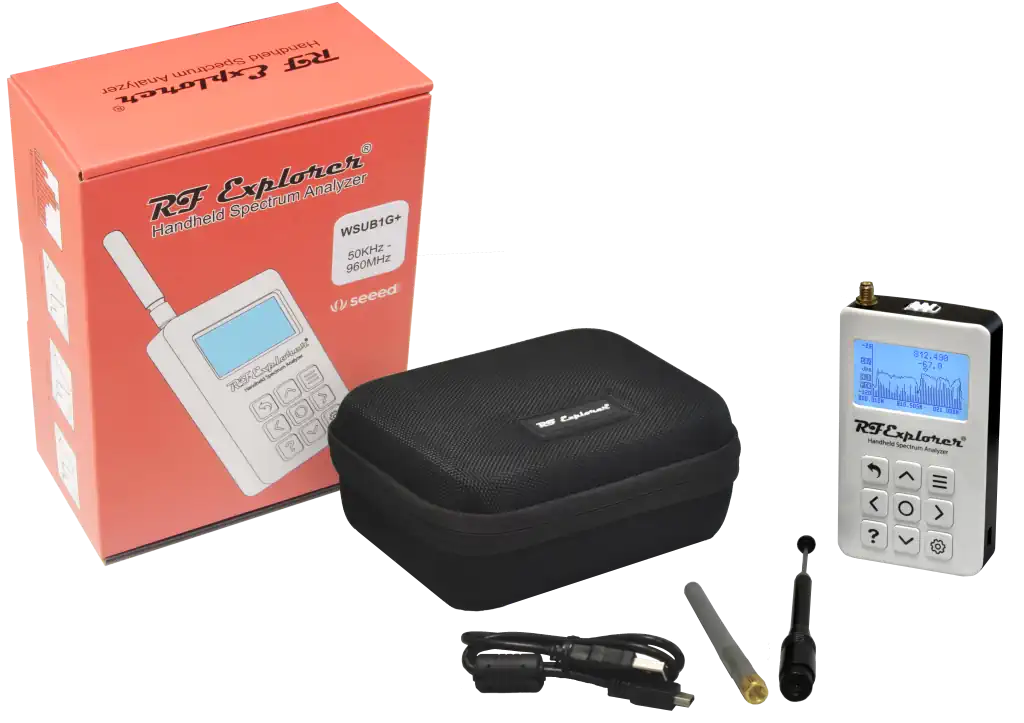

RF Explorer WSUB1G PLUS SLIM
- Internal LNA amplifier and selectable attenuator
- Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960MHz
- New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
- Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
- Ideal choice for HAM bands from 160meters to 33cm.
- Pocket size and light weight
- Solid metal case
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
- Multi-platform Windows/Linux/MacOS Open Source software and API libraries
- Can be extended with internal Expansion Modules for additional band and functionality

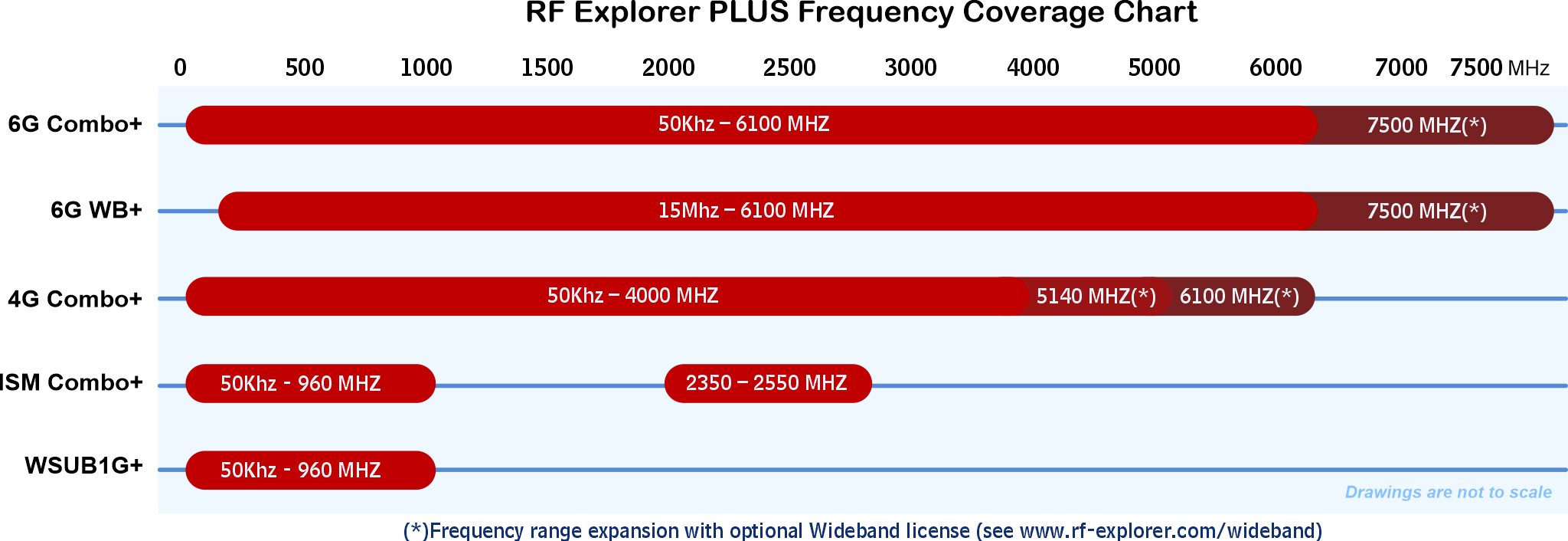

Comparison chart
RF Explorer WSUB1G+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz.
The new SLIM model offers an outstanding robust design, a more convenient USB connector on the side and larger internal battery capacity.
Technical details
| Specifications | ||
|---|---|---|
| Frequency band | 0.05Mhz - 960Mhz | |
| Frecuency span in single sweep | 0.1MHz - 960MHz | |
| Internal selectable LNA | 25dB gain | |
| Internal selectable Attenuator | 30 dB | |
| Screen | LCD display 128x64 pixels, equipped with backlight for great visibility indoors | |
| SMA | Standard 50 Ohms connector | |
| Antenna | Wideband telescopic 144/433MHz dual band included UHF 400-900MHz rubber duck articulated antenna included |
|
| Amplitude resolution | 0.5dBm | |
| Dynamic range | -125dBm to 10dBm | |
| Absolute Max input power | +30dBm | |
| Average noise level (typical LNA) | -125dBm | |
| Frequency stability and accuracy (typical) | +-10ppm | |
| Amplitude stability and accuracy (typical) | +-2dBm | |
| Frequency resolution | 1kHz | |
| Resolution bandwidth (RBW) | Automatic 2.6Khz to 600Khz | |
| Battery | Internal Lithium Ion 1800mA/h rechargeable battery | |
| Supported OS | Windows, Linux and MacOS | |
Our accesories for this item (Not Included):

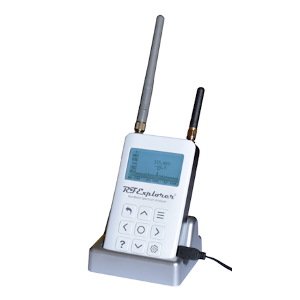

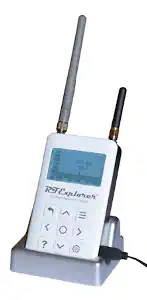

RFE Slim Holder
For best handling work at desk we recommend the specific RF Explorer Holder SLIM.

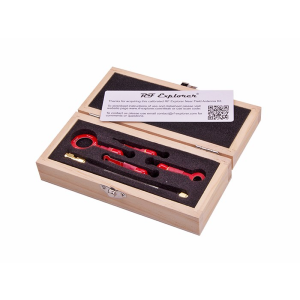

RFE Near Field Antenna Kit
For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit.

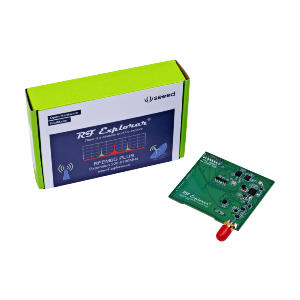

RF6M6G PLUS
For a RF Explorer WSUB1G PLUS there is an upgrade option available purchasing the RFEM6G PLUS module.

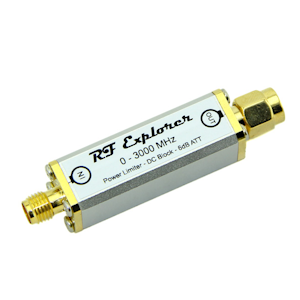

RFE Power Limiter
For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest using a RF Explorer Power Limiter.
