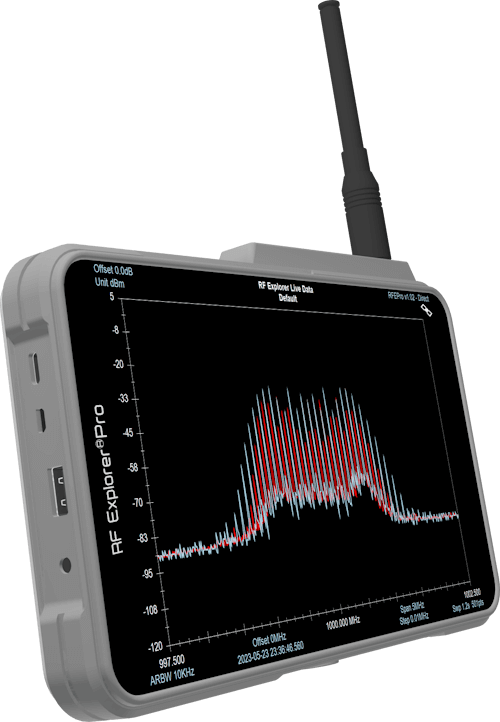

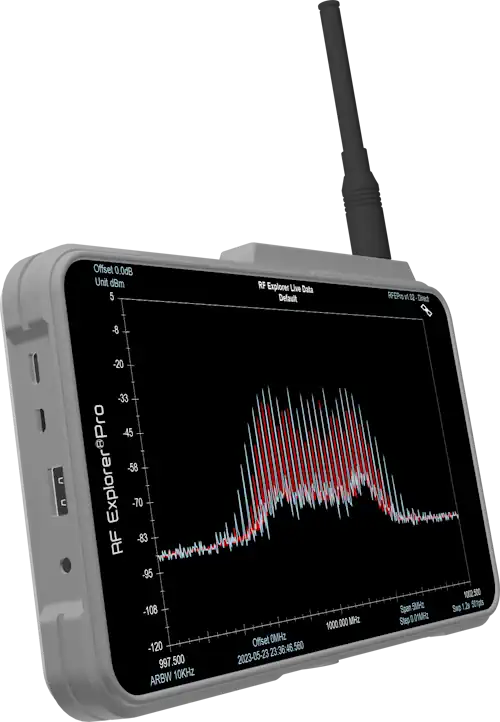

RF Explorer Pro

fas fa-hand-pointer

Wideband Touchscreen Multipurpose Instrument

fas fa-tools

Cable Tester and Tracking Generator SNA

fab fa-deezer

RF Spectrum Analyzer with Frequency Coordination

fas fa-wave-square

RF Power Meter and instantaneous measurement

Features

Multi-purpose

Integrated Spectrum Analyzer, Signal Tracking Generator, and Power Meter provides the right combination of features to achieve all RF tasks

Advanced Operation

Includes Zero Span, Waterfall 2D and 3D, wideband Power Channel, Data recording and replay, data export to cover wide range of scenarios


3rd Generation Analyzer

Unparalleled Performance in a Portable Package, the All-in-One Solution for Frequency Coordination and Interference Hunting

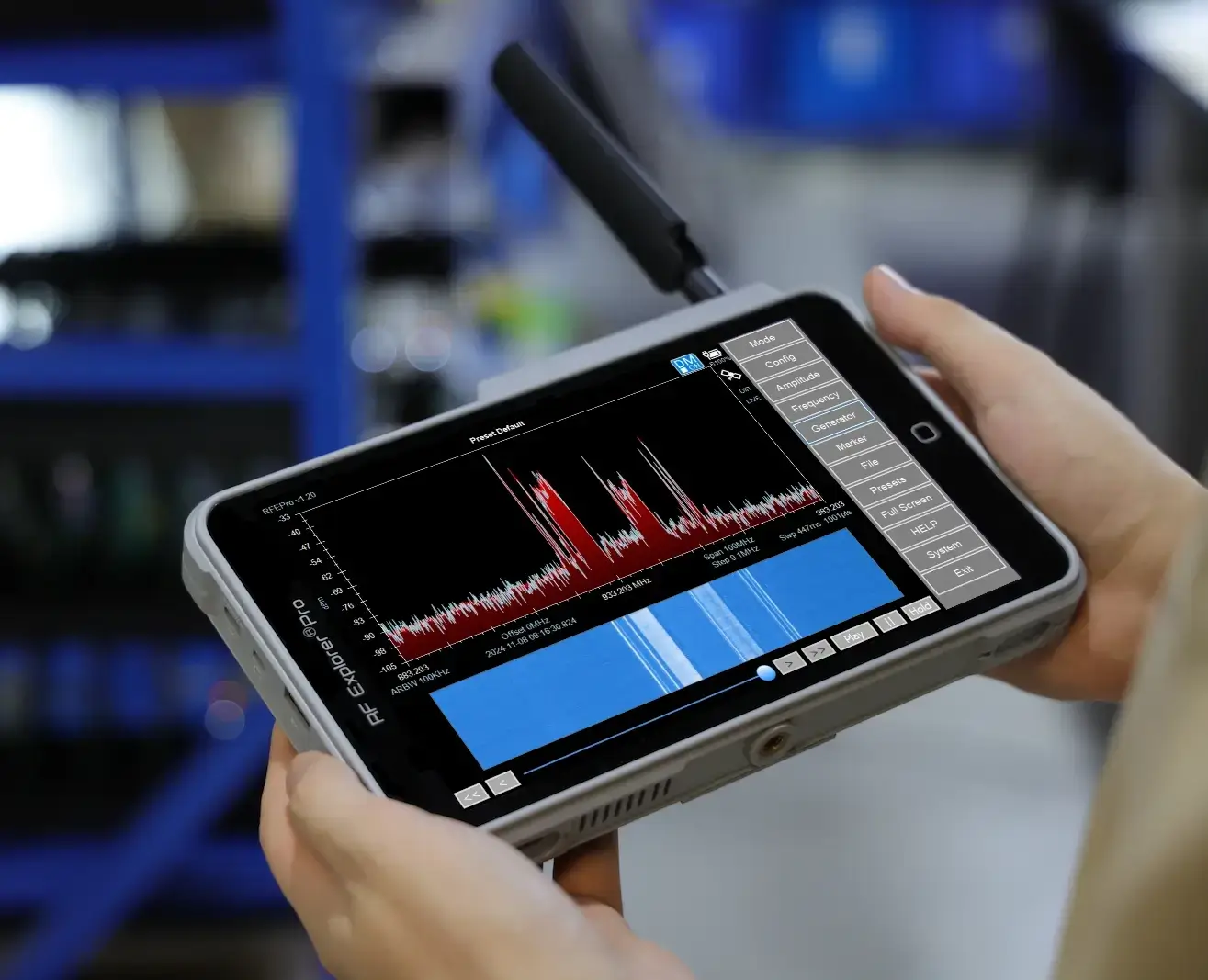

Touch Sensitive Gestures

High resolution 1280x800 IPS TFT 16.7M capacitive touch screen to enable capable graphic contents and intuitive gesture control

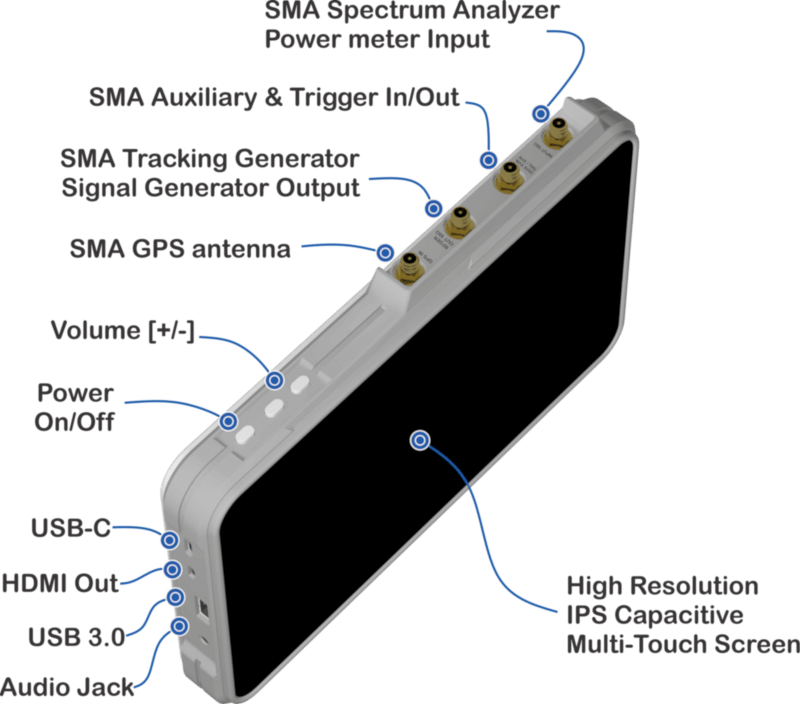

Design


Advanced compact design

Various connectivity features and a wide array of functions combine to deliver a solution that's just right, all controlled with simple touch gestures.

Specifications

Multi-Purpose Advanced Spectrum Analyzer

Frequency range

Spectrum Analyzer range
15MHz to 3.3GHz baseline
15MHz to 6.1GHz license 6G
15MHz to 7.5GHz license 7G
100KHz – 240MHz additional range with external RF Explorer Upconverter module
Signal Generator / Tracking range
24MHz to 6GHz shared license with spectrum analyzer mode
Wideband Power Meter range
10MHz to 8GHz no license required

Frequency Span

0Hz (zero span)
500KHz to 6GHz (sweep)

RBW

3Khz – 2.5MHz
Future firmware upgrade will enable 100Hz – 2.5MHz

Sweep Time

3GHz span in Auto RBW
280ms

Frequency Stability

typical 25C
TCXO ±0.5ppm

Amplitude Accuracy

typical 1GHz / -30dBm test
±1.5dB

Dynamic Range

Depending on RBW and Band
Direct: -110dBm to +10dBm
 Preamplifier LNA: -130dBm to -30dBm
 Attenuator: -80dBm to +33dBm

Noise Floor

typical LNA enabled
-160dBm/Hz

Battery Lifetime

Depending on operational mode
3.5hs - 5hs

Device Weight

Excluding antennas and cables
570 g / 20 oz

Device Size

215x140x25mm

Datasheet

Download full datasheet in PDF

Full Datasheet (pdf)
