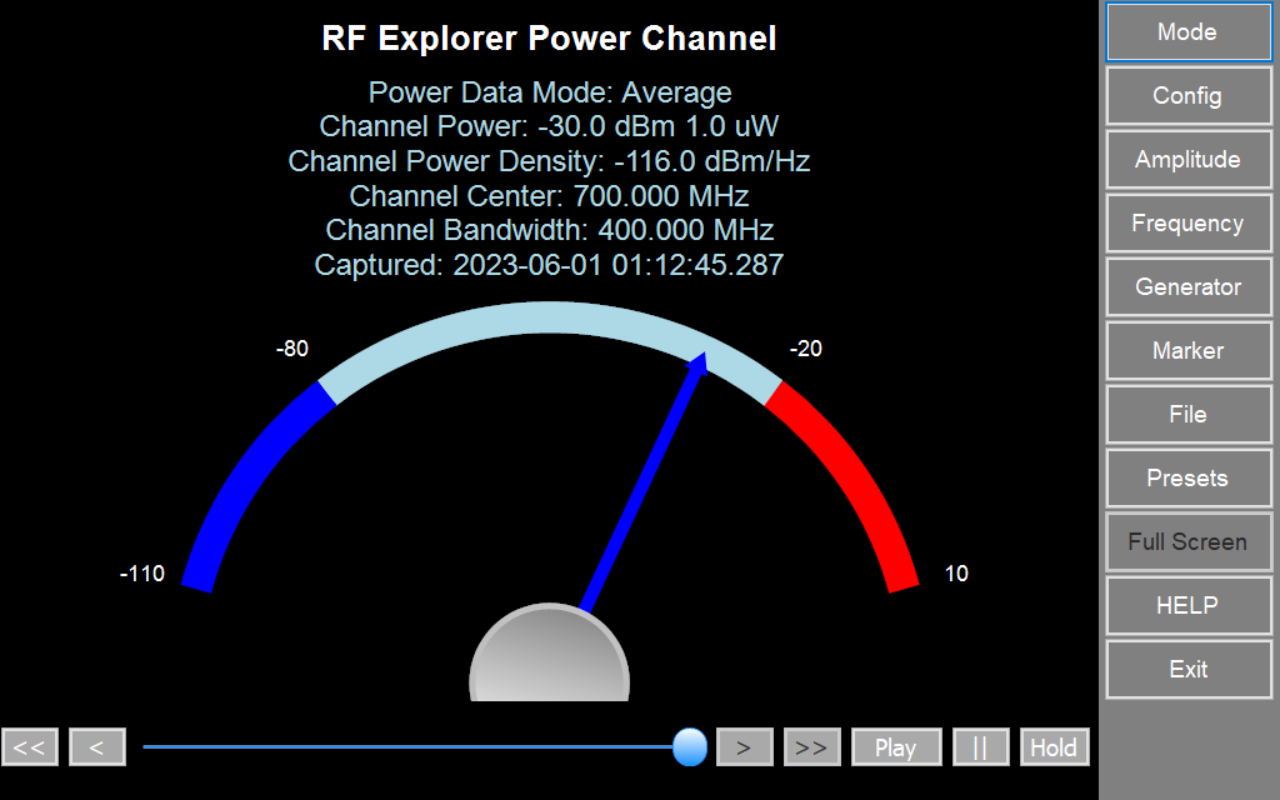

Power Channel mode

Show power measured within channel defined by start/stop frequency.

Power Data Mode

Trace from which measurements are performed.

Channel Power

Power received in the frequency band represented in dBm and Watt units.

Channel Power Density

Represents how the signal power is distributed in dBm/Hz unit.

Channel Center

Center frequency of the channel in MHz unit.

Channel Bandwidth

Bandwidth of the channel in MHz unit.


Date and time when sweep was captured.
