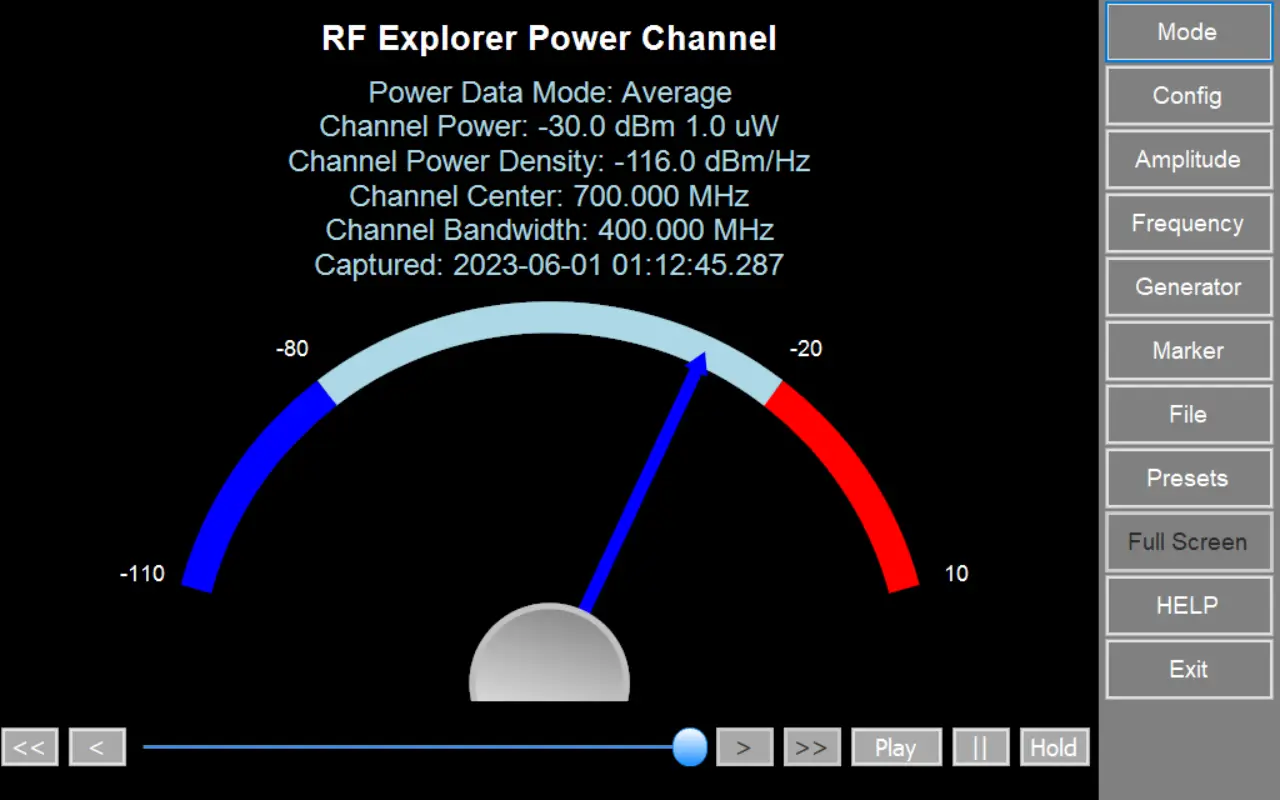

RF Explorer Power Channel mode

The Power Channel mode in the RF Explorer device allows you to measure and analyze the power within a defined frequency range. This feature is essential for RF engineers and technicians who need precise insights into signal strength, bandwidth, and power density.

Power Data Mode

Trace from which measurements are performed.

Channel Power

Power received in the frequency band represented in dBm and Watt units.

Channel Power Density

Represents how the signal power is distributed in dBm/Hz unit.

Channel Center

Center frequency of the channel in MHz unit.

Channel Bandwidth

Defines the total frequency span covered by the selected channel, measured in MHz

Captured

Date and time when sweep was captured.
