Spectrum Analyzer mode

Touch Labels

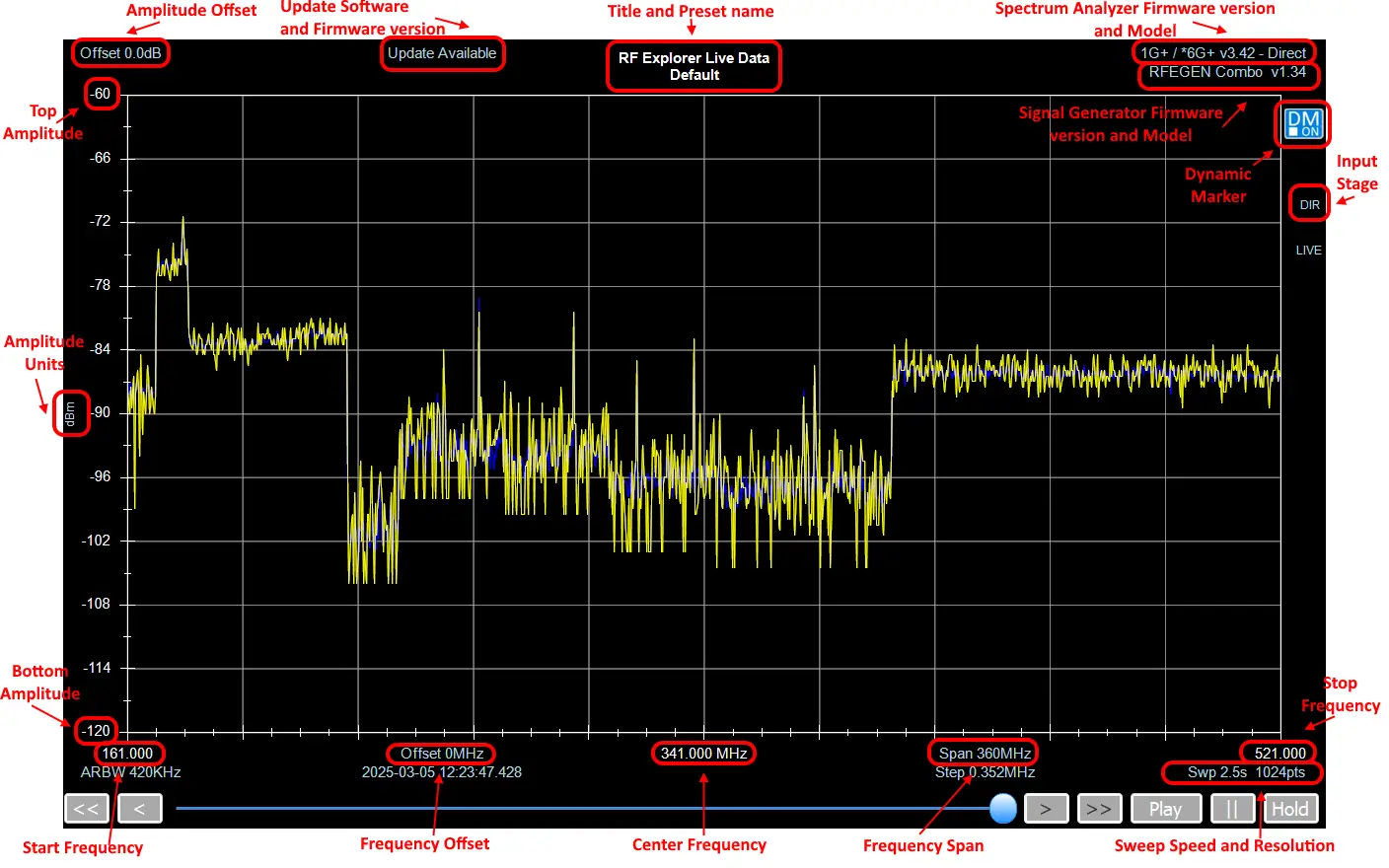

Some parameters can be easily configured by screen touch or click marked with red areas in picture above.

Press each of these regions to change:

  • Amplitude Top/Bottom - Change with numeric dialog
  • Start/Center/Stop frequency - Change with numeric dialog
  • Graph Title - Set current preset. Note this is not available for Full Screen mode
  • Amplitude Offset - Change with numeric dialog
  • Amplitude Units - Menu Config -> Display
  • Spectrum Analyzer Firmware Version and Model - Menu Config -> Device
  • Signal Generator Firmware Version and Model - For information purposes only
  • Frequency Offset - Change with numeric dialog
  • Span Frequency - Change with numeric dialog
  • Sweep Resolution - Menu Config -> Device
  • Upgrade Available - Update RF Explorer Touch software and device firmware version to the latest one available online.

  • Input Stage - Menu Config -> Device

  • [DM] - Switch between zoom and pan gestures activation and Dynamic Marker feature

For more Spectrum Analyzer mode details visit:

RF Explorer Spectrum Analyzer mode
