RF Explorer Signal Generator Combo - Specifications

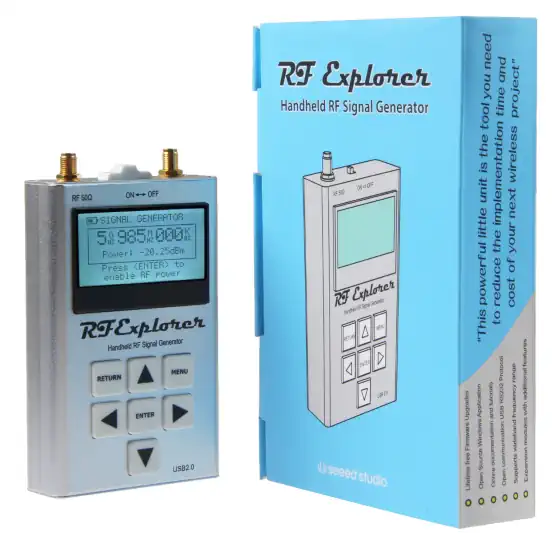

The RF Explorer Signal Generator Combo model enhance capabilities of baseline Signal Generator RFE6Gen model by extending power and frequency range, including efficient wideband harmonic filtering in a compact handheld device.

As a standalone unit, the Signal Generator Combo can generate CW and Sweep signals by selecting embedded menu options. When connected to a PC, it can be fully programmed with the RF Explorer for Windows software tool. Furthermore, the unit can work as a powerful Tracking Generator when used with RF Explorer Spectrum Analyzer connected to the same PC, offering full Scalar Network Analyzer (SNA) capabilities. The SNA feature allows full characterization of filters, amplifiers and any 2-port RF device.

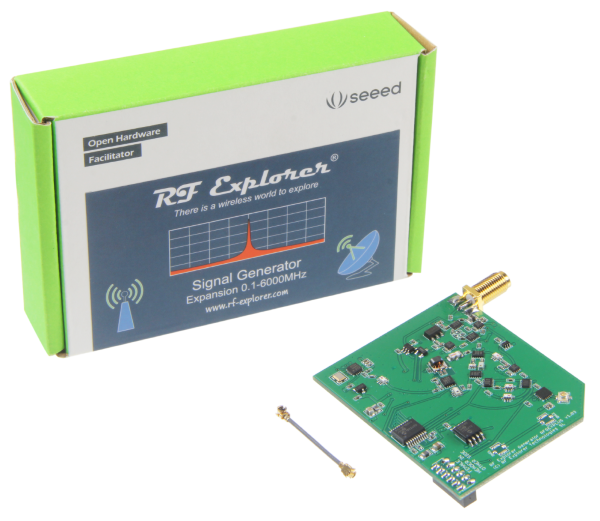

An expansion board is available to easily upgrade baseline Signal Generator RFE6GEN into a Combo model.

Important: After assembling of the RF Explorer Signal Generator Expansion board into a RF Explorer Signal Generator RFE6GEN baseline mainboard, the device becomes fully compatible with a RF Explorer Signal Generator Combo. Same specifications will apply for harmonics filtering, frequency accuracy and RF capabilities as a Combo unit assembled and calibrated at factory. However, due to differences between mainboard electronics, the RF power level accuracy cannot be guaranteed and may not comply with RF Explorer Signal Generator Combo specifications. We offer calibration services to fully adjust to specifications, please use contact form to request more information.

For full specifications please use Specifications and Datasheet document.

A summary of main performance parameters are listed in the table below.
