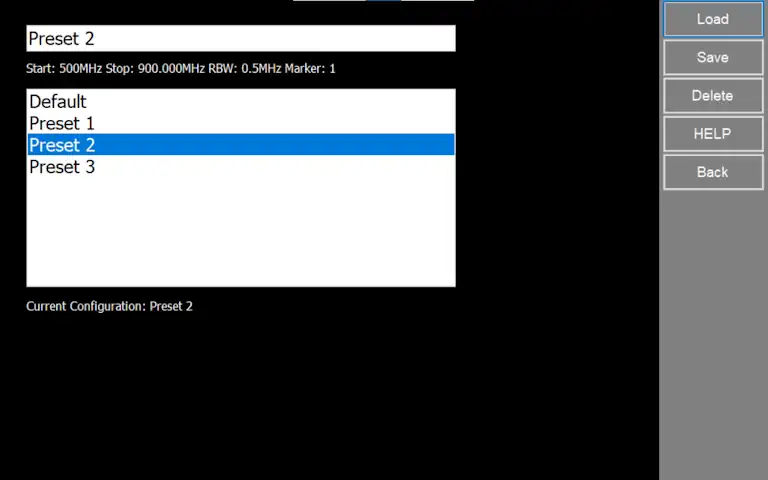

RF Explorer Pro Presets
Presets are predefined configuration stored by name in the application to easily recall commonly used setups.
Parameters persisted are frequency, amplitude, enabled traces and markers.
Load
Action option to load stored preset values into current configuration.
Save
Action option to save current configuration into the selected preset. This option cannot be undone, care should be taken to not overwrite another valid preset.
Delete
Remove selected preset configuration. “Default” preset cannot be deleted.
Back
Return to main menu and current visual mode (such as Spectrum Analyzer).
How to create a new preset
1
Set device configuration to store as frequency, amplitude, traces and markers
2
Go to “Presets” menu
3
Click on edit box and type a name for this preset
4
Click on [Save]
Notes
- Load Presets only will be effective while device is capturing data, not when a file has been loaded.
