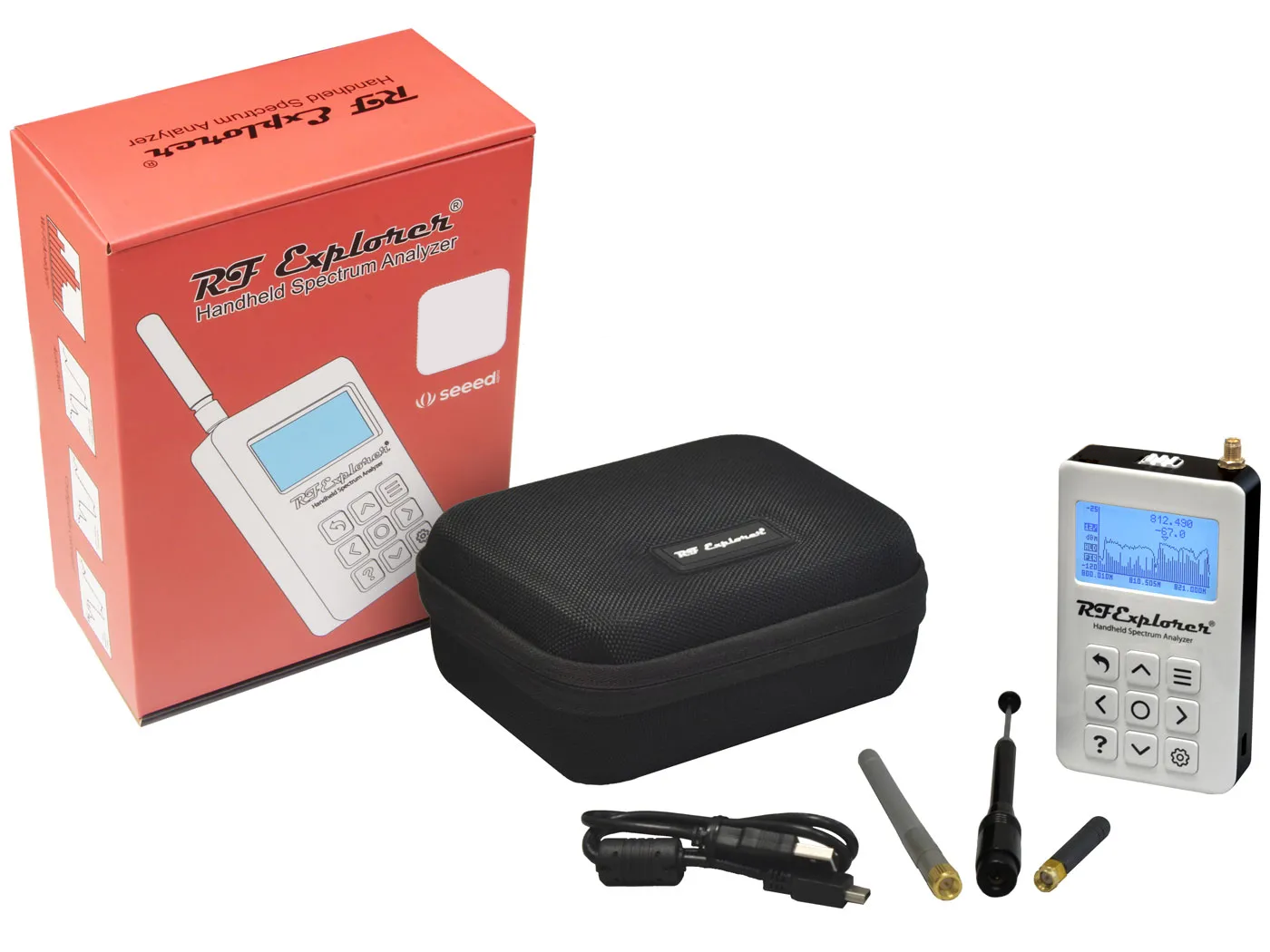

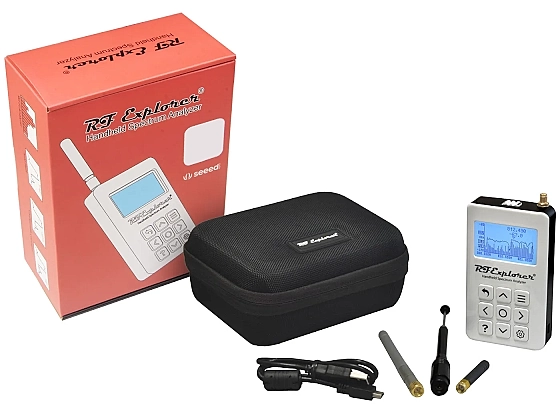

RF Explorer 6G WB PLUS
Internal LNA amplifier and selectable attenuator for additional power range handling.
Low frequency support from 15MHz covering HF, VHF and UHF (LF and MF can be added with RF Explorer Upconverter)
High frequency support covering all range up to 7.5GHz with no gaps (depending on license)
New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
Ideal choice for all usable HAM bands
Pocket size and light weight
Solid metal case with high quality varnished paint
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries

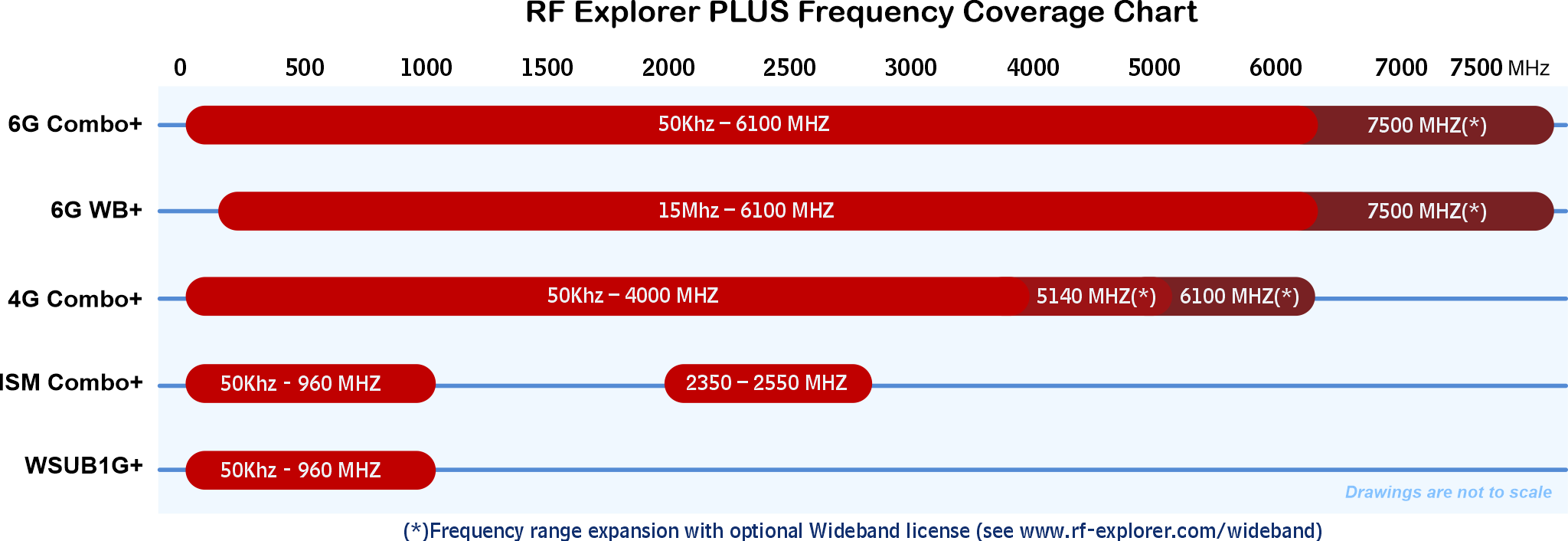

Comparison chart
RF Explorer 6G WB+ is the most powerful Spectrum Analyzer model, covering the full 6GHz range starting at 15MHz up to 6.1GHz with no gaps or limitations. Expansion is available up to 7.5GHz with Wideband license.
When compared to the standard 6G Combo model, the new SLIM design offers an outstanding robust enclosure with strong metallic body and shiny varnished paint, a more convenient USB connector on the side and larger internal battery capacity.
Technical details
| Specifications | ||
|---|---|---|
| Frequency band | Right connector: 15MHz – 6100MHz (15-7500MHz with Wideband license | |
| Frecuency span in single sweep | 2MHz – 960MHz (2-3000MHz with Wideband license) | |
| Internal selectable LNA | 25dB gain | |
| Internal selectable Attenuator | 30dB and 60dB | |
| Wifi Analyzer | Working at 2.4GHz and 5GHz bands | |
| Screen | LCD display 128x64 pixels, equipped with backlight for great visibility indoors | |
| SMA | Standard 50 Ohms connector | |
| Antenna | 2.4/5GHz dual band antenna included Wideband telescopic 144/433MHz dual band included UHF 400-900MHz rubber duck articulated antenna included |
|
| Amplitude resolution | 0.5dBm | |
| Dynamic range | -125dBm to 10dBm | |
| Absolute Max input power | +30dBm | |
| Average noise level (typical LNA) | -125dBm | |
| Frequency stability and accuracy (typical) | +-1.0ppm | |
| Amplitude stability and accuracy (typical) | +-3dBm | |
| Frequency resolution | 1kHz | |
| Resolution bandwidth (RBW) | Automatic 2.6Khz to 600Khz | |
| Battery | Internal Lithium Ion 1800mA/h rechargeable battery | |
| Supported OS | Windows, Linux and MacOS | |
Our accesories for this item (Not Included):

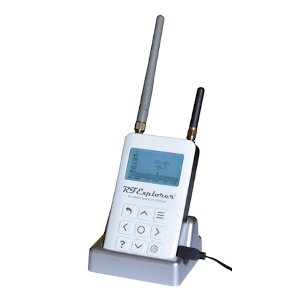

RFE Slim Holder
For best handling work at desk we recommend the specific RF Explorer Holder SLIM.
RFE Near Field Antenna Kit
For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit.

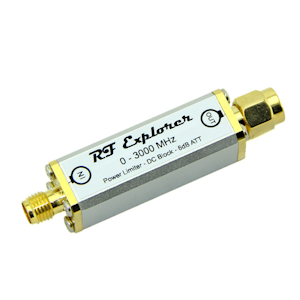

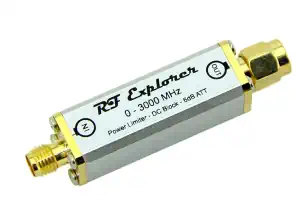

RFE Power Limiter
For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest using a RF Explorer Power Limiter.
