RF Explorer WSUB1G PLUS SLIM

Technical details

Specifications
Frequency band 0.05Mhz - 960Mhz
Frecuency span in single sweep 0.1MHz - 960MHz
Internal selectable LNA 25dB gain
Internal selectable Attenuator 30 dB
Screen LCD display 128x64 pixels, equipped with backlight for great visibility indoors
SMA Standard 50 Ohms connector
Antenna Wideband telescopic 144/433MHz dual band included
UHF 400-900MHz rubber duck articulated antenna included
Amplitude resolution 0.5dBm
Dynamic range -125dBm to 10dBm
Absolute Max input power +30dBm
Average noise level (typical LNA) -125dBm
Frequency stability and accuracy (typical) +-10ppm
Amplitude stability and accuracy (typical) +-2dBm
Frequency resolution 1kHz
Resolution bandwidth (RBW) Automatic 2.6Khz to 600Khz
Battery Internal Lithium Ion 1800mA/h rechargeable battery
Supported OS Windows, Linux and MacOS

Our accesories for this item (Not Included):

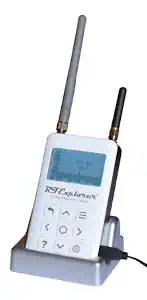

RFE Slim Holder

For best handling work at desk we recommend the specific RF Explorer Holder SLIM.

RFE Near Field Antenna Kit

For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit.

RF6M6G PLUS

For a RF Explorer WSUB1G PLUS there is an upgrade option available purchasing the RFEM6G PLUS module.

RFE Power Limiter

For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest using a RF Explorer Power Limiter.
